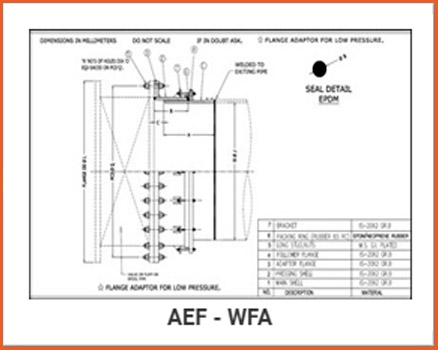

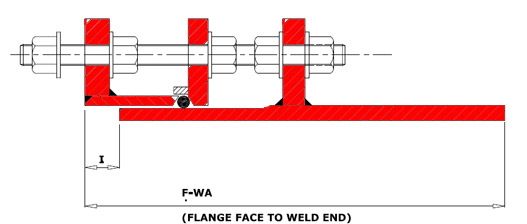

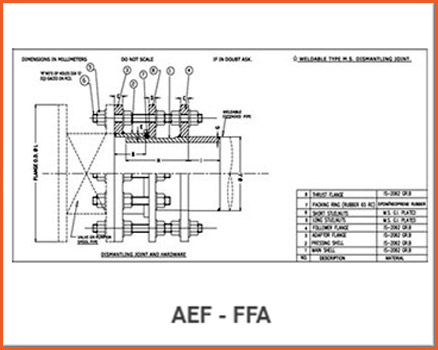

WELDABLE TYPE FLANGE ADAPTOR AEF-WFA |
||||||
SIZE (NB) |
SPECIFICATION |
Dimensions (mm) |
OPENING I (±) |
|||
PN-6 |
PN 10 |
PN 16 |
PN 25 |
mm |
||
100 |
F-WE Tie-rod: Size x Length (L) |
400 M16x250 |
400 M16x250 |
450 M16x250 |
450 M16x250 |
±25 |
125 |
F-WE Tie-rod: Size x Length (L) |
400 M16x250 |
400 M16x270 |
450 M16x330 |
450 M16x250 |
±25 |
150 |
F-WE Tie-rod: Size x Length (L) |
400 M16x275 |
400 M20x275 |
450 M20x360 |
450 M16x250 |
±35 |
200 |
F-WE Tie-rod: Size x Length (L) |
400 M16x300 |
400 M20x300 |
450 M20x360 |
450 M22x390 |
±35 |
250 |
F-WE Tie-rod: Size x Length (L) |
400 M16x300 |
400 M20x340 |
450 M22x390 |
450 M27x440 |
±50 |
300 |
F-WE Tie-rod: Size x Length (L) |
500 M20x350 |
500 M20x360 |
450 M22x420 |
450 M27x460 |
±50 |
350 |
F-WE Tie-rod: Size x Length (L) |
500 M20x350 |
500 M20x380 |
550 M22x420 |
550 M30x480 |
±50 |
400 |
F-WE Tie-rod: Size x Length (L) |
500 M20x425 |
500 M24x415 |
550 M27x460 |
550 M33x500 |
±50 |
450 |
F-WE Tie-rod: Size x Length (L) |
500 M20x450 |
500 M24x450 |
550 M27x460 |
550 M33x55O |
±50 |
500 |
F-WE Tie-rod: Size x Length (L) |
500 M20x450 |
500 M24x465 |
550 M30x5OO |
550 M33x550 |
±50 |
600 |
F-WE Tie-rod: Size x Length (L) |
500 M24x475 |
500 M27x475 |
550 M33x550 |
550 M36x630 |
±50 |
700 |
F-WE Tie-rod: Size x Length (L) |
600 M24x500 |
600 M27x490 |
650 M33xSOO |
650 M39x600 |
±50 |
800 |
F-WE Tie-rod: Size x Length (L) Clear Opening |
600 M27x500 |
600 M30x500 |
650 M36x550 |
650 M45x660 |
±50 |
900 |
F-WE Tie-rod: Size x Length (L) |
750 M27x550 |
750 M30x550 |
800 M36x55O 509 kg |
850 M45x660 |
±50 |
1000 |
F-WE Tie-rod: Size x Length (L) |
750 M27x575 |
750 M33x565 |
800 M39x600 |
850 M52x700 |
±50 |
1100 |
F-WE Tie-rod: Size x Length (L) |
750 M30x575 |
750 M33x465 |
800 M39x600 |
850 M52x700 |
±50 |
1200 |
F-WE Tie-rod: Size x Length (L) |
750 M30x625 |
750 M36x650 |
800 M45x660 |
850 M52x700 |
±50 |
1300 |
F-WE Tie-rod: Size x Length (L) |
750 M33x625 |
750 M36x660 |
800 M45x660 |
850 M52x700 |
±50 |
1400 |
F-WE Tie-rod: Size x Length (L) |
800 M33x700 |
800 M39x725 |
800 M45x660 |
850 M52x700 |
±75 |
1500 |
F-WE Tie-rod: Size x Length (L) |
800 M33x725 |
800 M39x730 |
850 M52x700 |
850 M52x700 |
±75 |
1600 |
F-WE Tie-rod: Size x Length (L) |
900 M33x750 |
900 M45x750 |
950 M52x700 |
950 M52x700 |
±75 |
1800 |
F-WE Tie-rod: Size x Length (L) |
900 M36x775 |
900 M45x775 |
950 M52x700 |
950 M52x700 |
±75 |
2000 |
F-WE Tie-rod: Size x Length (L) |
900 M39x800 |
900 M45x800 |
950 M56x700 |
950 M52x700 |
±75 |
